件号 | 规格(mm) | L(mm) | W(mm) | φQ(mm) | φH(mm) |
86-508-1-22 | 8 | 38 | 10 | 21.8 | 12.4 |
86-509-1-22 | 9 | 38 | 12 | 21.8 | 14 |
86-510-1-22 | 10 | 38 | 12 | 21.8 | 15.5 |

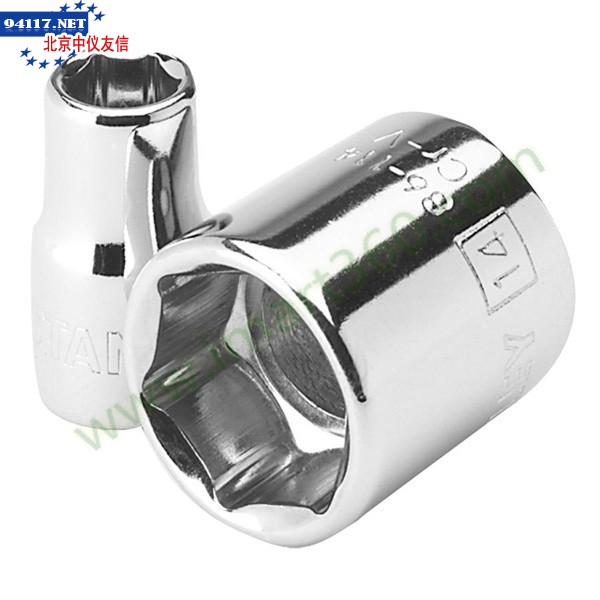

86-511-1-22 | 11 | 38 | 12 | 21.8 | 16.7 |
86-512-1-22 | 12 | 38 | 12 | 21.8 | 18 |
86-513-1-22 | 13 | 38 | 12 | 21.8 | 19.2 |
86-514-1-22 | 14 | 38 | 12 | 21.8 | 20.5 |
86-515-1-22 | 15 | 38 | 14 | 21.8 | 21 |
88-738-1-22 | 16 | 38 | 14 | 23.3 | 22.5 |
86-517-1-22 | 17 | 38 | 14 | 24 | 24 |
86-518-1-22 | 18 | 38 | 14 | 24.8 | 24.8 |
86-519-1-22 | 19 | 38 | 18 | 26.3 | 26.3 |
86-520-1-22 | 20 | 38 | 18 | 26.8 | 26.8 |
86-521-1-22 | 21 | 38 | 18 | 27.7 | 27.7 |
86-522-1-22 | 22 | 40 | 18 | 29.8 | 29.8 |
86-523-1-22 | 23 | 40 | 20 | 30.8 | 30.8 |
86-524-1-22 | 24 | 40 | 20 | 31.8 | 31.8 |
86-525-1-22 | 25 | 40 | 20 | 32.8 | 32.8 |
86-526-1-22 | 26 | 43 | 21 | 33.8 | 33.8 |
86-527-1-22 | 27 | 43 | 21 | 35.8 | 35.8 |
86-528-1-22 | 28 | 43 | 21 | 37.6 | 37.6 |
86-529-1-22 | 29 | 43 | 21 | 37.6 | 37.6 |
86-530-1-22 | 30 | 43 | 21 | 39.8 | 39.8 |
86-532-1-22 | 32 | 43 | 22 | 41.8 | 41.8 |
96-366-1-22 | 34 | 45.5 | 23.5 | 43.8 | 43.8 |
96-367-1-22 | 36 | 57.2 | 33 | 49.8 | 49.8 |
